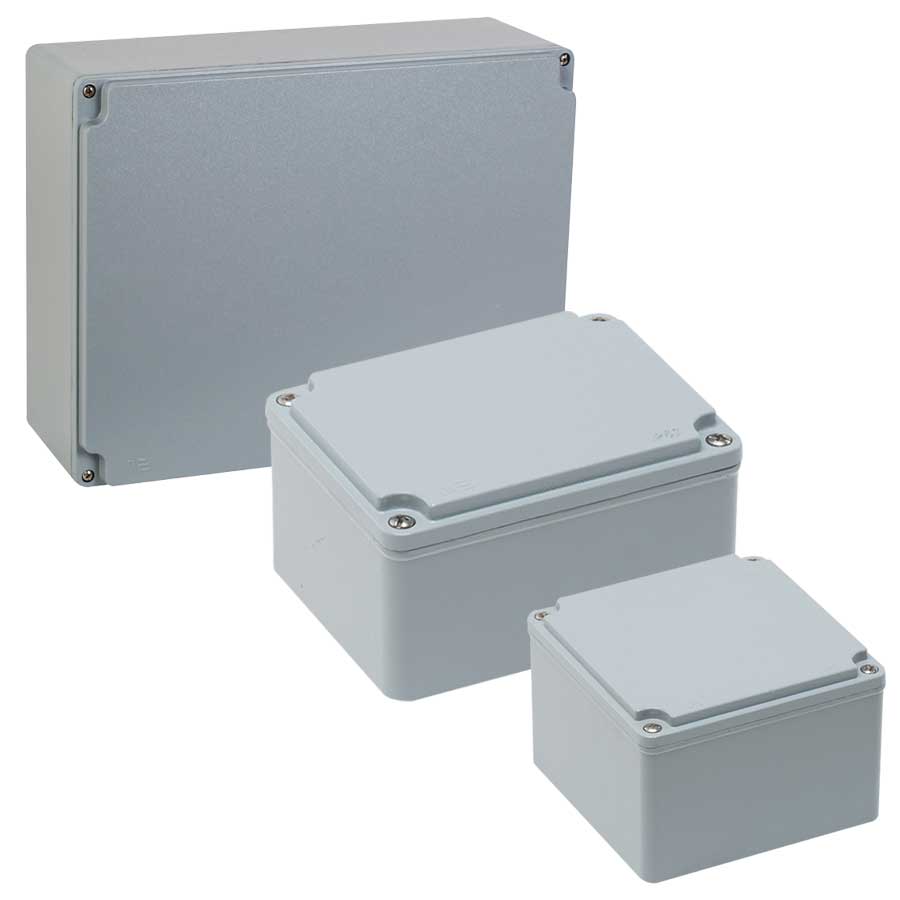

Hliníkové krabice IP 67
| materiál | Hliníkové krabice IP 67 |
| těsnění | PU pěna v drážce |
| třída krytí | IP 67 |
| výrobce | METE ENERJI |
Přehled typů
| kód | velikost | šířka (a) [mm] |
výška (b) [mm] |
hloubka (c) [mm] |
vnitřní hloubka (d) [mm] |
rozteč šroubů (e) [mm] |
rozteč šroubů (f) [mm] |
pant | ks v balení |
|---|---|---|---|---|---|---|---|---|---|
| M4025-02 | 65 x 65 x 40 | 65 | 65 | 40 | 34,8 | 53 | 53 | – | 30 |

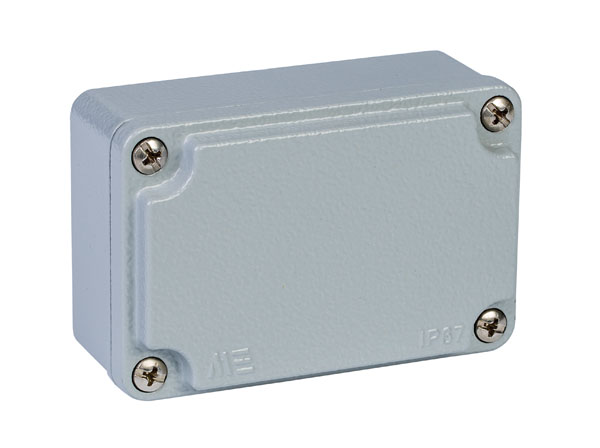

| M4025-03 | 65 x 100 x 40 | 65 | 100 | 40 | 34,5 | 88 | 35 | – | 20 |
| M4025-04 | 80 x 80 x 60 | 80 | 80 | 60 | 54,5 | 68 | 50 | – | 44 |

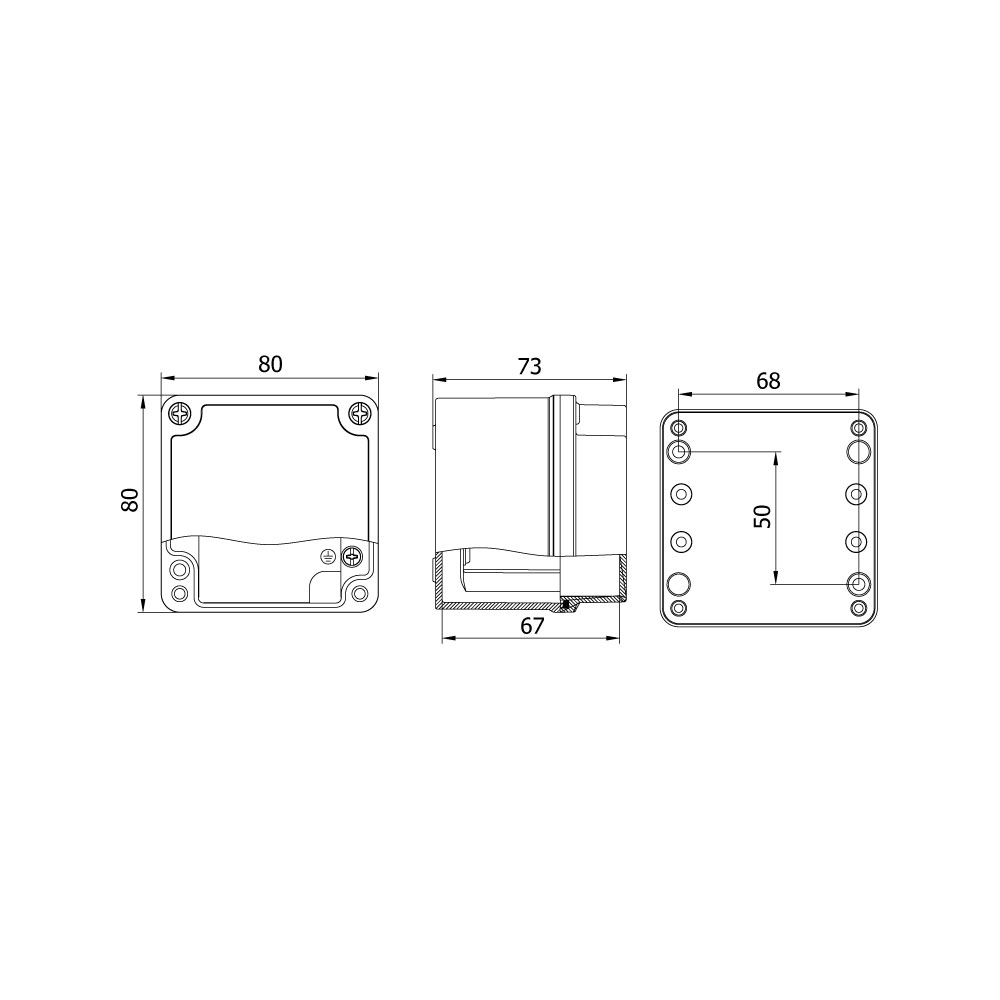

| M4025-54 | 80 x 80 x 73 | 80 | 80 | 73 (hluboký kryt) | 67 | 68 | 50 | – | 36 |
| M4025-05 | 80 x 130 x 60 | 80 | 130 | 60 | 54,5 | 118 | 50 | – | 28 |

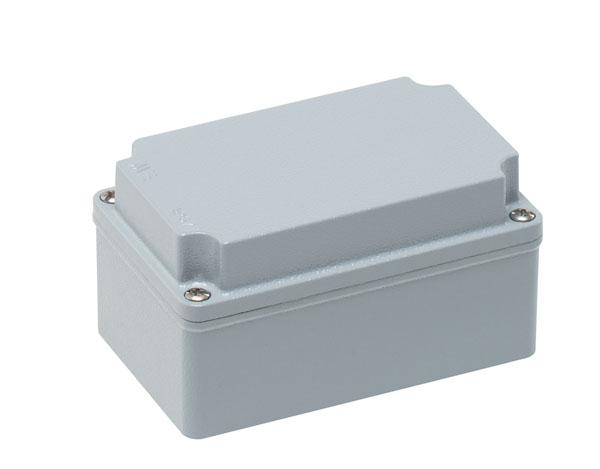

| M4025-55 | 80 x 130 x 73 | 80 | 130 | 73 (hluboký kryt) | 67 | 118 | 50 | – | 20 |
| M4025-06 | 100 x 100 x 73 | 100 | 100 | 73 | 67 | 86 | 66 | – | 24 |

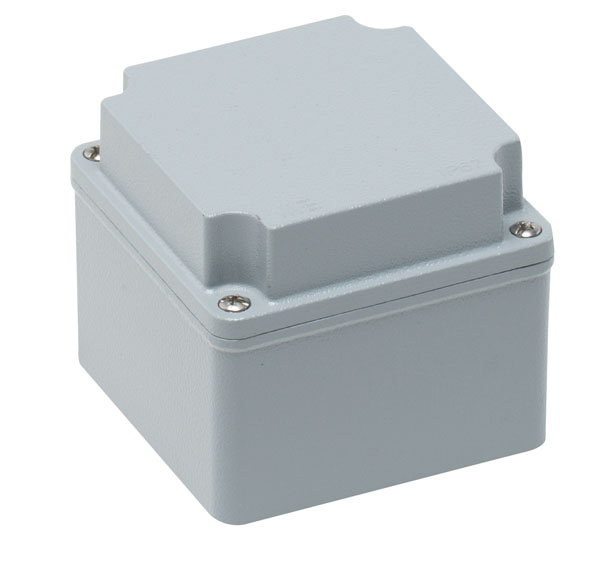

| M4025-56 | 100 x 100 x 90 | 100 | 100 | 90 | 84 | 86 | 66 | – | 12 |
| M4025-07 | 80 x 170 x 60 | 80 | 170 | 60 | 54 | 156 | 46 | – | 18 |

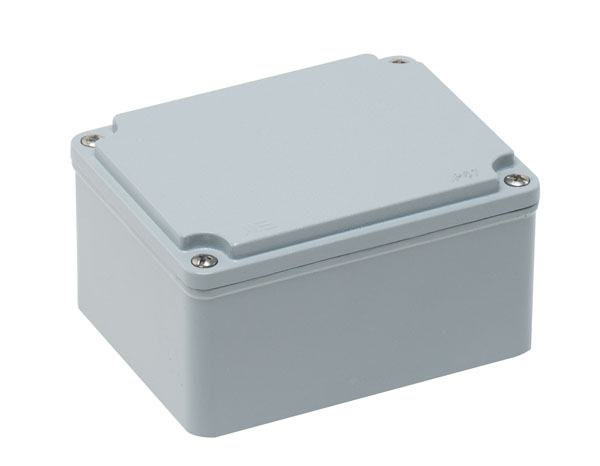

| M4025-08 | 100 x 130 x 73 | 100 | 130 | 73 | 67 | 116 | 66 | – | 20 |

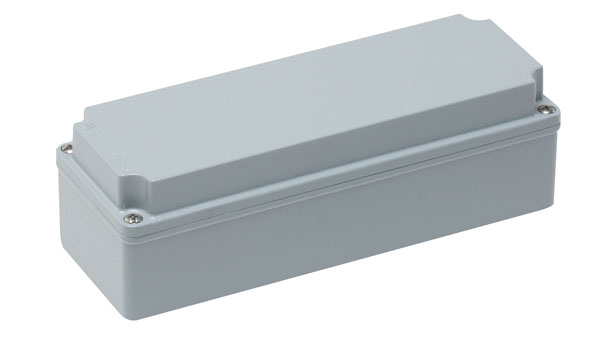

| M4025-09 | 80 x 230 x 73 | 80 | 230 | 73 | 67 | 218 | 50 | – | 12 |
| M4025-10 | 80 x 170 x 73 | 80 | 170 | 73 | 67 | 156 | 46 | – | 18 |

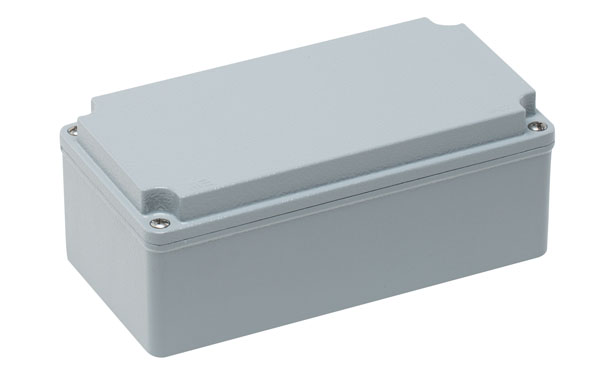

| M4025-60 | 100 x 200 x 80 | 100 | 200 | 80 | 74 | 186 | 66 | – | 12 |
| M4025-62 | 120 x 220 x 90 | 120 | 220 | 90 | 84 | 206 | 86 | – | 9 |
| M4025-11 | 130 x 130 x 90 | 130 | 130 | 90 | 84 | 116 | 96 | – | 12 |

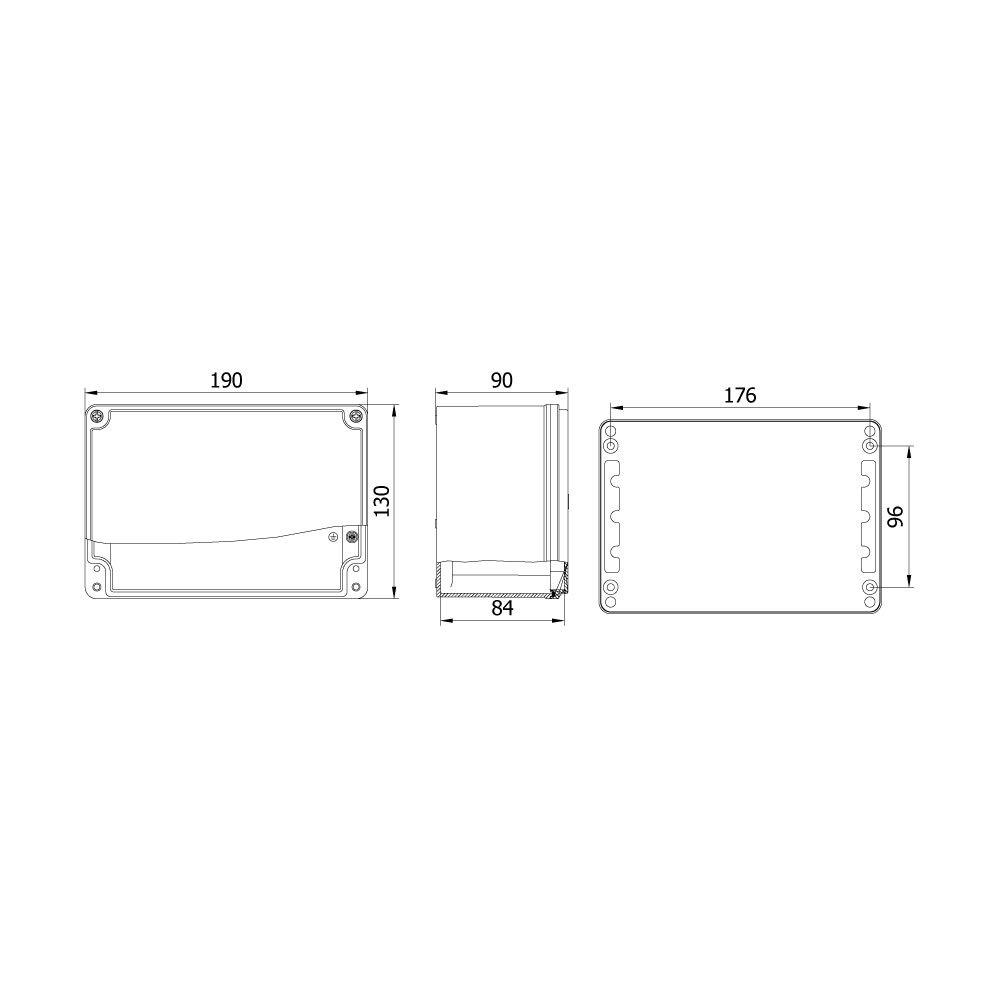

| M4025-12 | 130 x 190 x 90 | 130 | 190 | 90 | 84 | 176 | 96 | – | 10 |
| M4025-14 | 130 x 230 x 90 | 130 | 230 | 90 | 84 | 216 | 96 | – | 8 |
| M4025-16 | 160 x 160 x 90 | 160 | 160 | 90 | 84 | 146 | 126 | – | 6 |
| M4025-17 | 160 x 260 x 90 | 160 | 260 | 90 | 84 | 246 | 126 | – | 4 |
| M4025-17H | 160 x 260 x 90 | 160 | 260 | 90 | 84 | 246 | 126 | ANO | 4 |

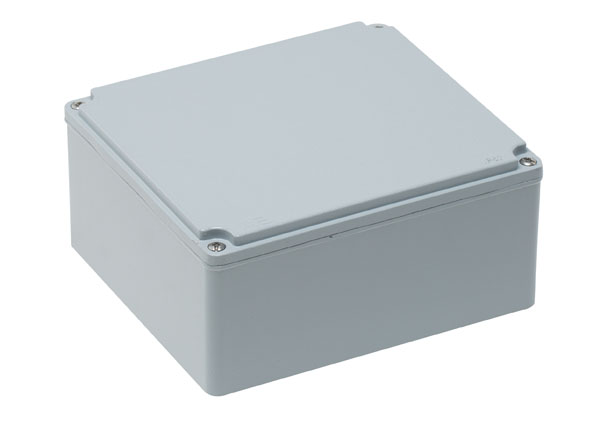

| M4025-18 | 170 x 190 x 90 | 170 | 190 | 90 | 84 | 176 | 136 | – | 6 |

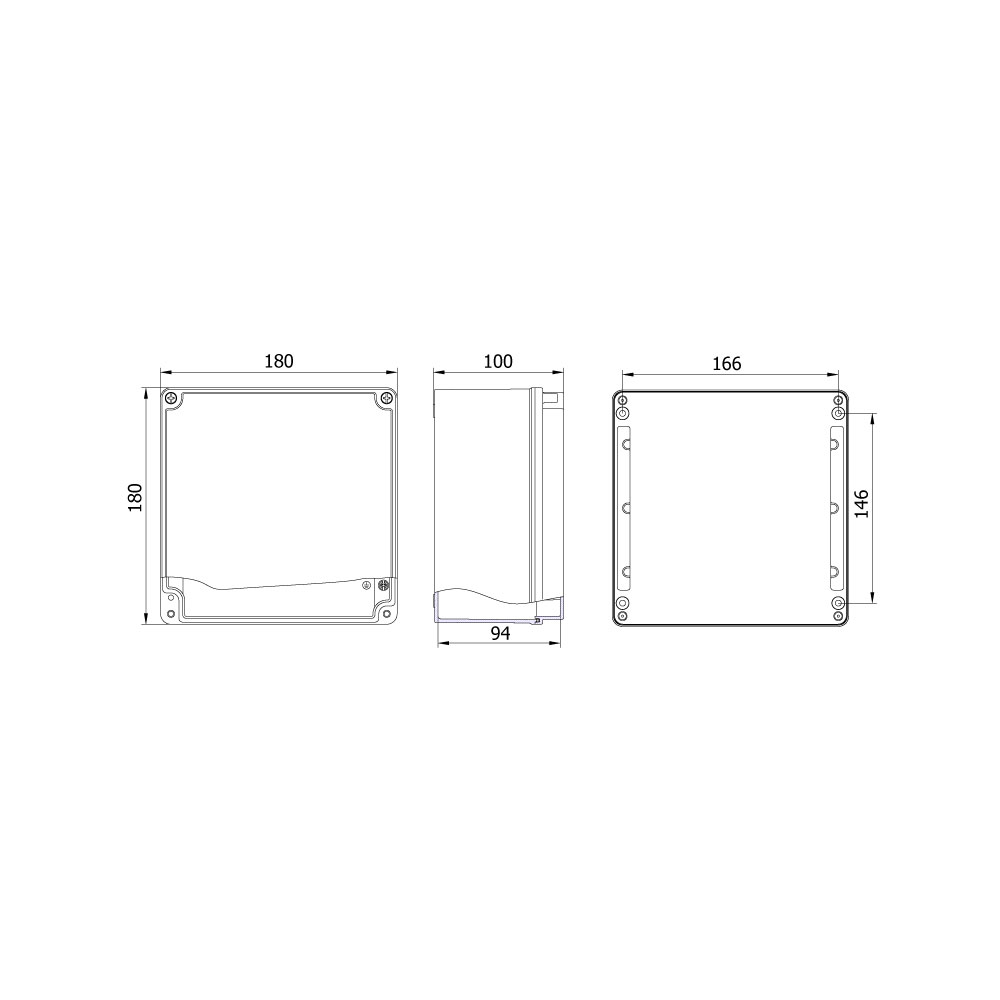

| M4025-40 | 180 x 180 x 100 | 180 | 180 | 100 | 94 | 166 | 146 | – | 5 |

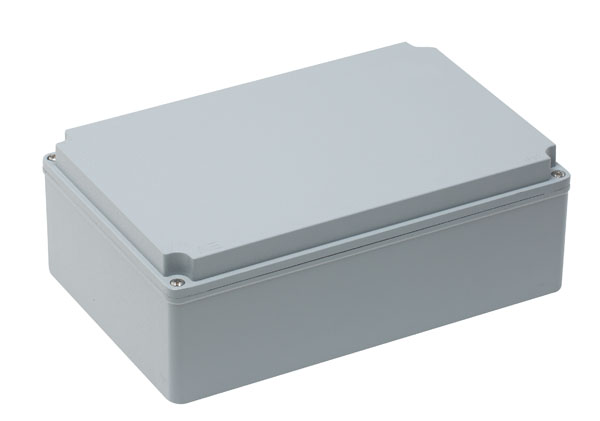

| M4025-42 | 180 x 280 x 100 | 180 | 280 | 100 | 94 | 266 | 146 | – | 3 |
| M4025-20 | 190 x 250 x 90 | 190 | 250 | 90 | 84 | 263 | 156 | – | 3 |

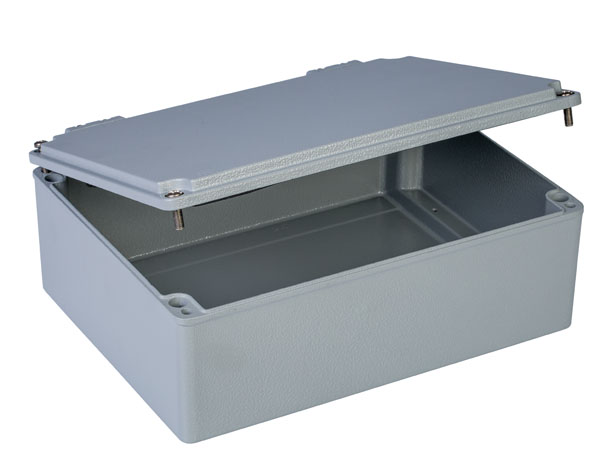

| M4025-20H | 190 x 250 x 90 | 190 | 250 | 90 | 84 | 263 | 156 | ANO | 3 |
| M4025-21 | 190 x 250 x 110 | 190 | 250 | 110 | 103 | 236 | 156 | – | 3 |
| M4025-21H | 190 x 250 x 110 | 190 | 250 | 110 | 103 | 236 | 156 | ANO | 3 |
| M4025-22 | 190 x 350 x 90 | 190 | 350 | 90 | 84 | 336 | 156 | – | 3 |

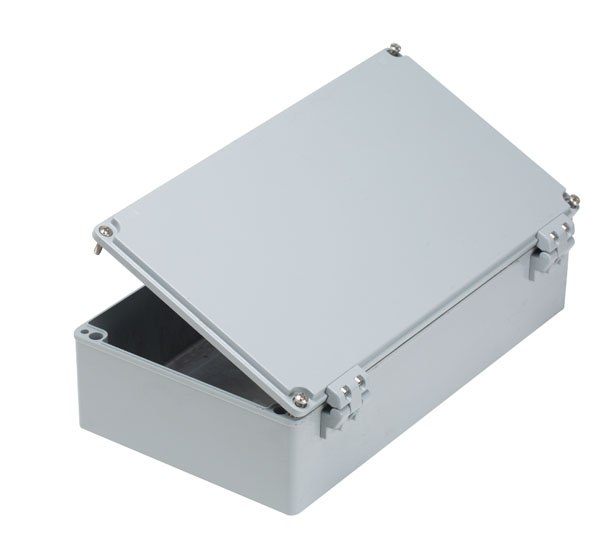

| M4025-22H | 190 x 350 x 90 | 190 | 350 | 90 | 84 | 336 | 156 | ANO | 3 |

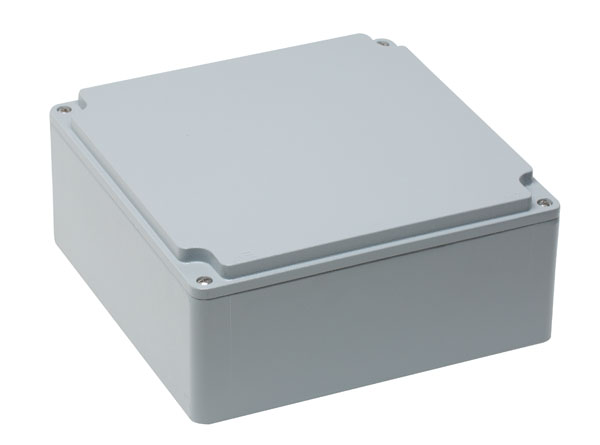

| M4025-24 | 250 x 250 x 110 | 250 | 250 | 110 | 103 | 230 | 230 | – | 3 |
| M4025-24H | 250 x 250 x 110 | 250 | 250 | 110 | 103 | 230 | 230 | ANO | 3 |
| M4025-30 | 310 x 400 x 140 | 310 | 400 | 140 | 130 | 380 | 266 | – | 3 |
| M4025-30H | 310 x 400 x 140 | 310 | 400 | 140 | 130 | 380 | 266 | ANO | 3 |
| M4025-58 | 100 x 100 x 80 | 100 | 100 | 80 | 74 | 146 | 66 | – | 8 |
| M4025-64 | 140 x 200 x 90 | 140 | 200 | 90 | 84 | 186 | 106 | – | 9 |

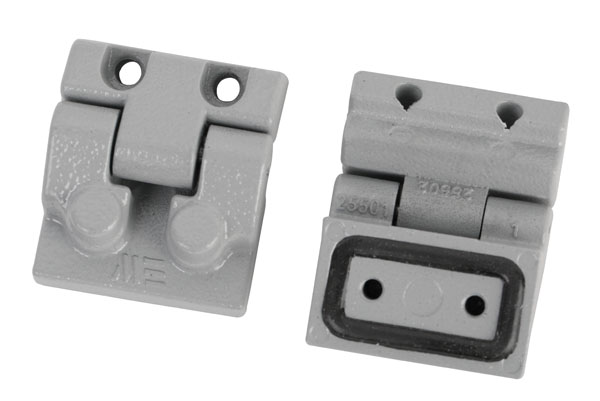

Hliníkové panty
| kód | určeno pro krabice |
|---|---|
| M2998-0 | M4025-17, M4025-20, M4025-22 |
| M2998-1 | M4025-24, M4025-30 |
